Data loss on Sony storage media ranging from external hard drives used for PC backups to specialized recordings on professional camcorder drives—requires a systematic approach to ensure the highest probability of recovery. This Sony hard drive data recovery guide provides a technical framework for assessing drive health and executing a recovery process to protect your personal data and retrieve lost data.
- Initial Assessment of the Sony Hard Drive
- Precautions Before Attempting Recovery
- Method 1: Troubleshooting Logical Drive Errors
- 2. Run the Error Checking Tool for File System Errors
- Method 2: Utilizing Professional Data Recovery Software
- When to Seek Professional Laboratory Services?
- Best Practices for Preventing Future Data Loss
- 3. Monitoring Drive Health with S.M.A.R.T. Data
- Summary of Data Recovery Actions
Initial Assessment of the Sony Hard Drive
Before initiating software-based recovery, you must perform basic diagnostics to define the scope of the failure and the specific hard disk drive hardware involved.
A. Determine the Drive Type and Connection
Identify whether the device is a Sony External HDD/SSD, including modern solid state drives, a Memory Stick, SD cards, or an SxS card used in professional video production. Note the interface being used: USB 3.0, USB-C, or a proprietary Sony interface. Ensure you are using the original cable or a certified high-speed data cable, as insufficient power or bandwidth from a faulty cable can mimic the symptoms of a failed drive.
B. Identify the Symptoms of Data Loss and Deletion
Categorize the failure into one of two groups:
1. Logical Failure: The drive is recognized by the computer but files are missing, the drive shows as “RAW,” or it prompts you to format.
2. Physical Failure: The drive emits clicking, grinding, or whirring sounds, or it is not detected by the BIOS/Disk Management at all.
Precautions Before Attempting Recovery
Improper handling of a failing drive can lead to permanent data destruction. Adhere to these mandates strictly.
A. Cease All Write Operations
Stop using the drive immediately. Do not save new files, install software, or continue recording onto the Sony media. Any new data written to the drive may overwrite the sectors containing important data, deleted files, or lost files, rendering them unrecoverable.
B. Check Power and Connection Stability
Ensure the drive is connected directly to the motherboard or a powered USB hub. Fluctuations in power during a recovery scan can cause the drive’s read/write heads to crash. If the drive is external, test it on a different computer to rule out operating system-specific driver conflicts.
Method 1: Troubleshooting Logical Drive Errors
If the drive is visible in the system but inaccessible, the issue may reside within the file system or partition table.
1. Use Disk Management to Assign Drive Letters
Sometimes a Sony drive is healthy but lacks a path.
1. Right-click Start and select Disk Management.
2. Locate the Sony drive in the list.
3. If it has no letter, right-click the partition and select Change Drive Letter and Paths.
4. Click Add and assign a new letter (e.g., E:).
2. Run the Error Checking Tool for File System Errors

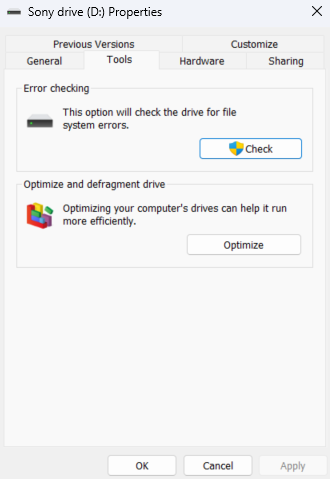

To repair directory corruption, use the Windows Error Checking tool. This serves as an alternative to the Manual CHKDSK error checking method.
1. Access This PC, Right-click on the drive and select Properties.
2. Go to the Tools Tab and in the Error checking section, click on Check.
Warning: Do not run CHKDSK if you suspect physical failure (clicking sounds), as the stress of the repair process can exacerbate hardware damage or existing physical damage.
Also Read: How to Recover data from HDDs on Mac?
Method 2: Utilizing Professional Data Recovery Software
When built-in utilities fail, professional-grade scanning software is required to reconstruct the file headers.
Deleted, lost, or formatted data on your Sony hard drive?
Remo Recover is optimized for handling complex file signatures used by Sony devices, including high-bitrate video formats. Recover data with an advanced algorithm and streamlined process today!
1. Download Remo Recover, which comes with both Windows and Mac versions. Install the software on your internal C: drive, never on the Sony drive you are trying to recover.
2. Connect your Sony hard drive using a proper USB cable and ensure that it is properly connected.

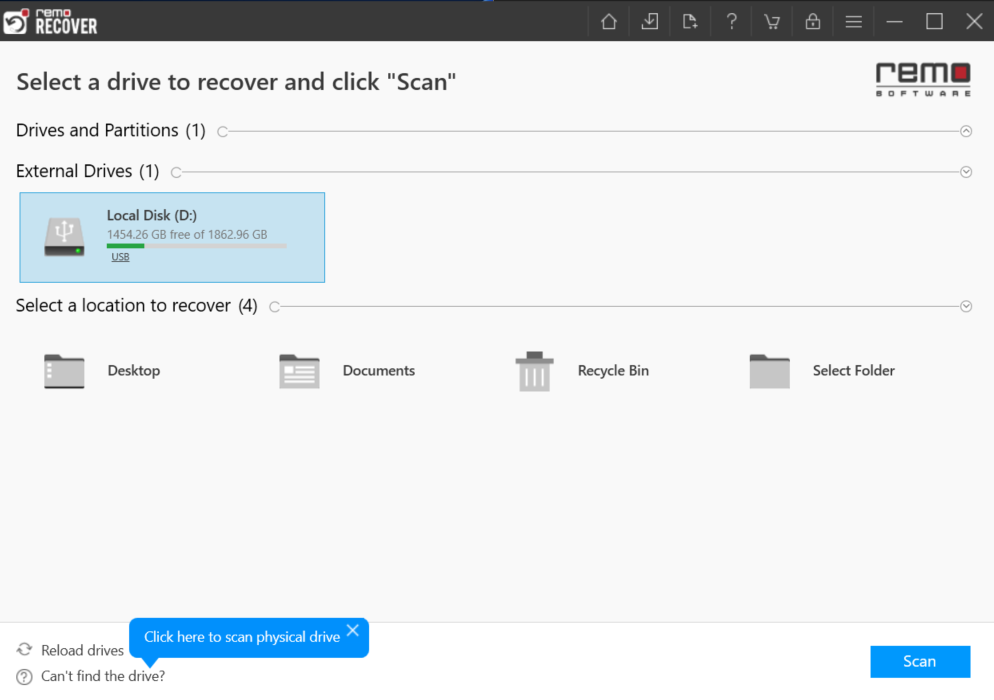

3. Launch the tool and select the Sony hard drive. Click on the “Scan” button to initiate the Sony hard drive recovery process.
4. Once the scan process is complete, you will find all the recovered files under the “Lost and Found” folder or the “Lost Partition” folder.
5. Utilize the built-in handy features of this tool for searching and sorting files, such as the Advanced Filter, Search Box, Preview, Tags, and more.
6. Select the files you wish to recover and click the “Recover” button. When prompted, choose a safe location and click “OK” to complete the Sony data recovery process.
7. Save the recovered files to complete Sony hard drive recovery
When to Seek Professional Laboratory Services?
Software cannot fix mechanical issues. In certain scenarios, DIY attempts will lead to total data loss, making professional data recovery companies a safer alternative.
If the drive is not detected in Disk Management or the BIOS, or if it makes repetitive clicking noises (the “Click of Death”), the read/write head assembly has likely failed.
Best Practices for Preventing Future Data Loss
1. Using Built-in Sony Utility Software
Sony provides specialized tools for its proprietary media formats, particularly for digital imaging and video professionals. Sony Media Cloud Services allows users to upload data directly from drive to cloud acting as a solid backup option.
2. Implement a 3-2-1 Backup Strategy
To ensure data redundancy:
1. Maintain 3 copies of your data.
2. Store copies on 2 different media types (e.g., Sony External HDD and Cloud).
3. Keep 1 copy off-site.
3. Monitoring Drive Health with S.M.A.R.T. Data
Use a utility to monitor S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) attributes. Pay close attention to “Reallocated Sectors Count.” If this value increases, the Sony drive is nearing the end of its functional life; migrate your data immediately.
Summary of Data Recovery Actions
To recover data from an external hard drive, first isolate the drive to prevent overwriting. Use Sony’s File Rescue tool for imaging media or Remo Recover for general partition loss. If the drive exhibits mechanical noise, cease all operations and consult professional data recovery providers like DriveSavers who utilize a certified cleanroom. Finalize the process by establishing a 3-2-1 backup routine to mitigate future hardware failures.
